MSI cancel Sold Out Model: B650M GAMING PLUS WIFI

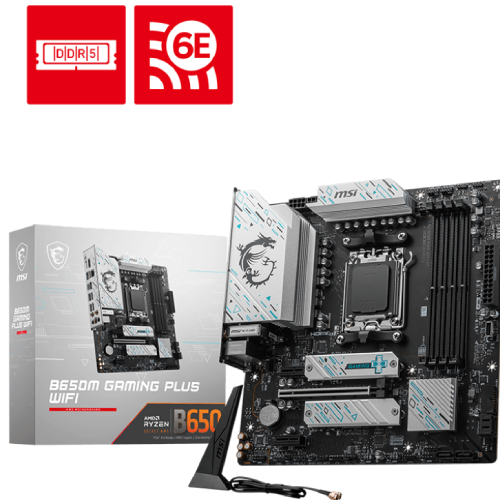

MSI B650M GAMING PLUS WIFI AM5 Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 175 views
  • Model: B650M GAMING PLUS WIFI
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Processors for Socket AM5
  • Supported RAM: 4x DDR5 7200+(OC) MHz
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: 2.5G LAN with Wi-Fi 6E Solution
20,300৳
23,330৳
13% OFF
EMI starts at 665৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD B650
Form FactormATX
243.84mmx243.84mm
Expansion Slots
PCI1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset
Memory
TypeDDR5
Slots4x UDIMM
Supported MemoryMemory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory256GB
Graphics
GraphicsSupport HDMI 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
HDMI1x HDMI
USB (s)4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s)Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication moduleAMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Supported Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
OthersDisplay Port (s)
1x DisplayPort
Others
Special Features4x EZ Debug LED
Warranty Details
Warranty Details3 Years
Description

The MSI B650M GAMING PLUS WIFI AM5 Motherboard is built for gamers and professionals looking for high-speed performance in a compact Micro-ATX design. It supports Ryzen 9000, 8000, and 7000 processors, ensuring powerful and efficient computing. With 4x DDR5 slots supporting up to 7200+ MHz (OC), experience ultra-fast memory performance for gaming and multitasking. The 2.5G LAN & Wi-Fi 6E solution delivers stable and fast connectivity, making it perfect for competitive gaming and high-speed workloads. This motherboard also includes HDMI & DisplayPort outputs, providing flexible display options for high-quality visuals. Built with premium components and advanced cooling, the MSI B650M GAMING PLUS WIFI is an ideal choice for Bangladeshi gamers and PC enthusiasts. Buy now from at the best price and enjoy unmatched reliability!
