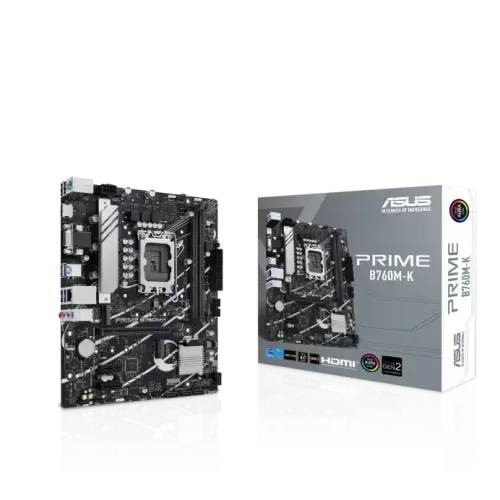

Asus PRIME B760M-K mATX DDR5 Motherboard

ASUS PRIME B760M-K DDR5 mATX Motherboard: High-Speed Connectivity and Compact Design

The ASUS PRIME B760M-K is a feature-packed micro-ATX motherboard designed to unlock the potential of Intel's 14th, 13th, and 12th Gen processors. With DDR5 support, multiple connectivity options, and ASUS-exclusive features, it provides a solid foundation for gaming, multitasking, and professional workloads.

Overview

The ASUS PRIME B760M-K motherboard offers cutting-edge performance in a compact mATX form factor. Engineered for compatibility with DDR5 memory and the latest Intel processors, it is equipped with advanced connectivity, reliable thermal management, and robust build quality to cater to modern computing demands.

Key Features

Processor and Memory Compatibility

• Supported CPUs:
  Intel LGA1700 socket supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Memory:
  • DDR5 support for up to 8000 MHz (OC).
  • 2 DIMM slots, supporting a maximum of 64GB RAM.
  • Dual-channel memory architecture with Intel XMP support for enhanced performance.

Expansion Options

• 1 x PCIe 4.0 x16 slot for high-performance GPUs.
• 2 x PCIe 4.0 x1 slots for additional expansion cards.

Advanced Storage Support

• 2 M.2 slots (PCIe 4.0 x4 mode) for ultra-fast NVMe SSDs.
• 4 SATA 6Gb/s ports for traditional storage drives.
• Intel Rapid Storage Technology with RAID 0/1/5/10 support for advanced data configurations.

Graphics Outputs

• 1 x HDMI port: Supports 4K resolution at 30Hz.
• 1 x VGA port for legacy display connectivity.

USB Connectivity

• Rear Ports (6 total):
  • 4 x USB 3.2 Gen 1 (Type-A).
  • 2 x USB 2.0 (Type-A).
• Front Ports (5 total):
  • 1 x USB 3.2 Gen 1 header (2 ports).
  • 2 x USB 2.0 headers (3 ports).

Networking and Audio

• Networking: Realtek 2.5Gb Ethernet for high-speed wired connections.
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, featuring:
  • Jack detection, multi-streaming, and front-panel jack retasking.
  • Premium capacitors and dedicated PCB layers for superior audio quality.

Cooling and Power Features

• Fan Headers:
  • 1 x 4-pin CPU fan header.
  • 1 x 4-pin chassis fan header.
• Power Connectors:
  • 1 x 24-pin main power connector.
  • 1 x 8-pin +12V power connector.

Special Features

ASUS 5X PROTECTION III

• DIGI+ VRM for stable power delivery.
• LANGuard and overvoltage protection.
• SafeSlot Core and stainless-steel back I/O for durability.

ASUS EZ DIY Tools

• ProCool power connectors for secure and reliable connectivity.
• CrashFree BIOS 3 and EZ Flash 3 for easy BIOS recovery and updates.

Target Audience

The ASUS PRIME B760M-K is ideal for budget-conscious gamers, DIY enthusiasts, and professionals who require a compact motherboard with high-speed connectivity, reliable performance, and future-ready features.

Reasons to Buy

1. DDR5 compatibility for next-gen memory performance.
2. Support for the latest Intel processors.
3. Dual M.2 slots and RAID support for versatile storage options.
4. Compact micro-ATX design suitable for small and mid-sized cases.
5. High-speed 2.5Gb Ethernet for fast and stable networking.

Reasons Not to Buy

1. Limited to 64GB of RAM, which may be insufficient for heavy multitasking or high-end applications.
2. No PCIe 5.0 support for next-gen GPUs and storage.
3. Absence of built-in Wi-Fi, requiring additional hardware for wireless connectivity.
