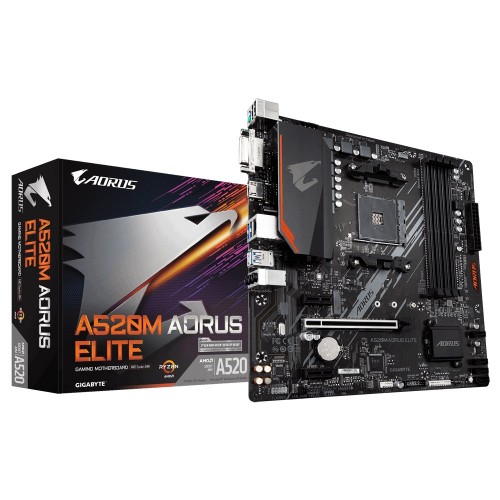

Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard

Gigabyte check_circle In Stock Model: Gigabyte A520M Aorus Elite

Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard

Name: Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard
Brand: Gigabyte
Price: 10500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 60 views

Model: Gigabyte A520M Aorus Elite
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Smart Fan 5 Features
Ultra-Fast NVMe PCIe 3.0 x4 M.2
5+3 Phases Pure Digital VRM Solution

10,500৳

12,000৳

13% OFF

EMI starts at 344৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD A520
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Expansion Slots

PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Memory

Type	Dual channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB

Graphics

Graphics	Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Others	Max Shared Memory 16 GB

Connector & Ports

HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)	4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others	DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

Others

Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Support for Windows 10 64-bit

Warranty Details

03 years

Description

The Gigabyte A520M Aorus Elite AMD AM4 ATX Gaming Motherboard is an ideal choice for gamers and PC enthusiasts looking for a reliable, feature-rich, and future-proof platform to support the latest AMD Ryzen 5000, 4000G, and 3rd Gen processors. Built on the A520 chipset, this motherboard offers enhanced power efficiency and performance optimization for a smooth and responsive computing experience.

Designed for seamless gaming and multitasking, the 5+3 Phases Pure Digital VRM Solution ensures stable power delivery, reducing voltage fluctuations and enhancing overall system stability. This makes it an excellent choice for those who want efficient performance in demanding gaming and content creation tasks.

The Ultra-Fast NVMe PCIe 3.0 x4 M.2 slot allows for lightning-fast storage speeds, ensuring quick game load times, faster file transfers, and smooth system responsiveness. Whether you're working with large datasets, gaming, or running professional applications, this motherboard offers the speed and performance needed for modern computing.

With Smart Fan 5 technology, the motherboard provides intelligent cooling management, allowing users to optimize fan speeds and maintain an ideal thermal balance for prolonged gaming or productivity sessions. The advanced thermal design ensures that critical components stay cool under load, preventing overheating and extending the motherboard's lifespan.

For connectivity, the Gigabyte A520M Aorus Elite includes a variety of USB ports, HDMI, and high-speed networking options, making it a versatile solution for gaming setups, office work, and content creation. Designed with Gigabyte’s Ultra Durable components, this motherboard guarantees long-term reliability, performance, and durability.

If you're looking for a powerful, stable, and future-ready AM4 motherboard with strong gaming capabilities and high-speed storage support, the Gigabyte A520M Aorus Elite is an excellent choice for your next gaming or productivity build.
