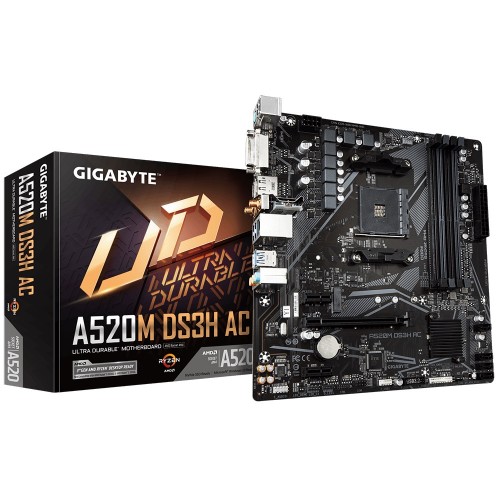

GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

Gigabyte check_circle In Stock Model: A520M DS3H AC

GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard

Name: GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard
Brand: Gigabyte
Price: 10699 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 82 views

Model: A520M DS3H AC
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Smart Fan 5 Features
RGB FUSION 2.0 Supported
5+3 Phases Pure Digital VRM

10,699৳

11,720৳

9% OFF

EMI starts at 351৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset	AMD A520
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Expansion Slots

PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Memory

Type	DDR4
Slots	4 x DIMM sockets
Supported Memory	AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)

Graphics

Graphics	Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz Support for up to 3 displays at the same time
Others	Max Shared Memory 16 GB

Connector & Ports

HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)	4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module	Intel Wi-Fi 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others	Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

Others

Special Features

Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Warranty Details

3 Years

Description

The GIGABYTE A520M DS3H AC Ultra Durable Micro-ATX Motherboard is a feature-packed solution for gaming, office, and home PC builds, offering powerful performance, stability, and efficient cooling. Compatible with AMD Ryzen 5000, 4000G, and 3rd Gen processors, this AM4 motherboard provides a solid foundation for mainstream and budget-friendly builds.

Engineered with a 5+3 phases pure digital VRM, the A520M DS3H AC ensures reliable power delivery to the CPU, allowing smooth multitasking and efficient system operation. It supports RGB Fusion 2.0, enabling customizable RGB lighting effects for a personalized PC build experience.

For optimal cooling, the Smart Fan 5 technology offers multiple temperature sensors and hybrid fan headers, ensuring efficient heat dissipation even during heavy workloads or gaming sessions. The motherboard also features high-quality audio capacitors and audio noise guards to deliver an immersive and crystal-clear sound experience.

With multiple connectivity options, including high-speed USB ports, PCIe slots, and NVMe M.2 storage support, the A520M DS3H AC is well-equipped for fast data transfer and expandability. The built-in Wi-Fi AC module provides wireless connectivity, making it a versatile choice for modern setups.

Whether you're building a reliable gaming PC, an efficient workstation, or an everyday computing system, the GIGABYTE A520M DS3H AC Ultra Durable Micro-ATX Motherboard offers great value, durability, and performance for your AM4-based system.
