| Supported CPU | AMD Socket sTRX4: Support 3rd Generation AMD Ryzen Threadripper processors |
| Chipset | AMD TRX40 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS: X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| PCI | 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 4.0 standard.) |
| M.2 Socket | 3 x M.2 Socket 3 connectors |
| Type | Dual Channel DDR4 Memory Technology |
| Slots | 8 x DDR4 DIMM sockets |
| Supported Memory | - Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 256 GB |
| Graphics | Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and3-Way/2-Way NVIDIA SLI technologies |
| USB (s) | 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Intel GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Audio | 1 x front panel audio header Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | iTE I/O Controller Chip 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x GIGABYTE add-in card connector 2 x temperature sensor headers 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Warranty Details | 03 years warranty |

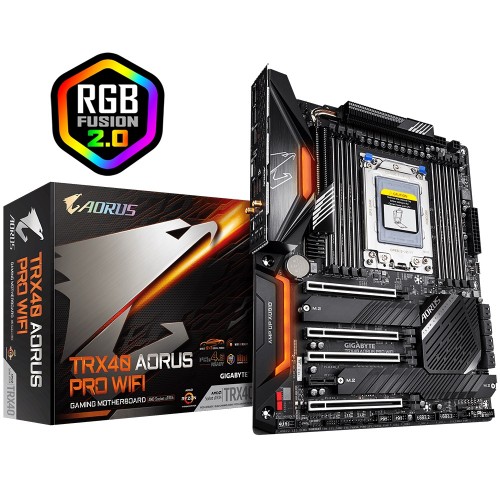

The Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard is a powerhouse built for extreme workloads, gaming, and professional content creation. Designed to support 3rd Gen AMD Ryzen Threadripper processors, it maximizes multi-threaded performance with its robust power delivery and efficient cooling system. The motherboard features an advanced thermal solution, including a Fins-Array heatsink and triple PCIe 4.0 x4 M.2 slots with thermal guards, ensuring optimal heat dissipation and system stability. With support for up to 256GB of quad-channel ECC and non-ECC DDR4 RAM across 8 DIMM slots, users can experience seamless multitasking and high-speed data processing. PCIe 4.0 support enables ultra-fast connectivity for GPUs and storage devices, enhancing overall system performance. Integrated high-speed Wi-Fi ensures uninterrupted networking, making this motherboard an ideal choice for professionals handling demanding applications. Whether you are a gamer, designer, or data scientist, the Gigabyte TRX40 AORUS PRO is built to push the limits of performance and reliability.
The latest price of Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard in Bangladesh is 0৳ You can buy the Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard at best price from our Website or visit any of our showrooms.
