| Supported CPU | AMD Ryzen 5000 Series / 3rd Generation AMD Ryzen processors / 3rd Gen AMD Ryzen with Radeon Graphics processors |
| Chipset | AMD B550 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode 2 x PCI Express x1 slots |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/ x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/ x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Support PCIe 3.0 x4/x2 SSDs |
| Type | DDR4 |
| Slots | 4 x DIMM sockets |
| Supported Memory | AMD Ryzen 5000 series Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) |
| Graphics | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Others | Max Shared Memory 16 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| USB (s) | CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/ 1.1 ports on the back panel Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/ 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/ x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/ x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Support PCIe 3.0 x4/ x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x temperature sensor headers 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Warranty Details | 03 years warranty |

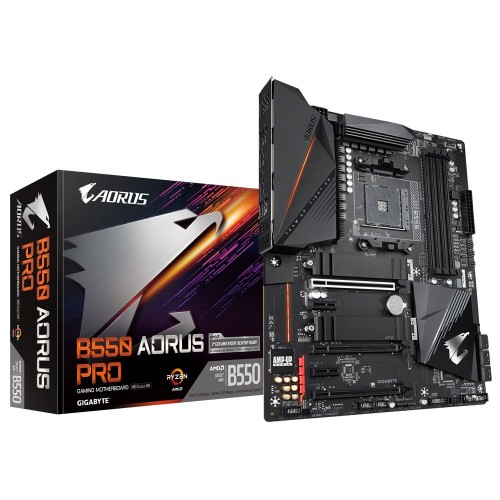

The GIGABYTE B550 AORUS PRO AM4 ATX Motherboard is engineered to provide exceptional performance, stability, and connectivity for high-end gaming and professional workloads. Supporting AMD Ryzen 5000, 4000G, and 3rd Gen processors, this motherboard offers excellent compatibility and power efficiency, making it a future-ready choice for PC builders. With PCIe 4.0 support, users can experience ultra-fast data transfer speeds, allowing for high-performance gaming, 3D rendering, and video editing without bottlenecks.
A standout feature of the B550 AORUS PRO is its robust power design, ensuring stable voltage delivery even under high loads. The motherboard incorporates an advanced thermal design with enlarged heatsinks, high-quality thermal pads, and M.2 thermal guards to keep components cool during extended gaming sessions and intensive computing tasks.
For connectivity, the ultra-fast 2.5GbE LAN provides blazing-fast wired networking, reducing latency for smooth online gaming and fast data transfers. The inclusion of AMP-UP Audio with ALC1220-VB enhances the gaming and multimedia experience, delivering high-fidelity sound with clear details and deep bass.
Additionally, the motherboard is built with ultra-durable components, reinforced PCIe slots, and premium capacitors, ensuring long-term reliability. With support for RGB Fusion 2.0, users can customize their PC build with dynamic lighting effects, adding a unique aesthetic touch. Whether you're an enthusiast looking to build a powerful gaming rig or a professional needing a reliable workstation, the GIGABYTE B550 AORUS PRO AM4 ATX Motherboard offers outstanding performance, superior cooling, and advanced connectivity to meet all your computing needs.
The latest price of GIGABYTE B550 Aorus Pro AM4 ATX Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE B550 Aorus Pro AM4 ATX Motherboard at best price from our Website or visit any of our showrooms.
