| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| Type | Dual-Channel Architecture |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | support up to 128GB |
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller: 2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Others | Max Shared Memory 16 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| USB (s) | Integrated into the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+Intel Titan Ridge Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | 2 x Intel GbE LAN chips (1000 Mbit/100 Mbit). Intel Wi-Fi 6 AX200: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5: Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC1220-VB codec Support for DTS: X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Support for Windows 10 64-bit |
| Warranty Details | 03 years warranty |

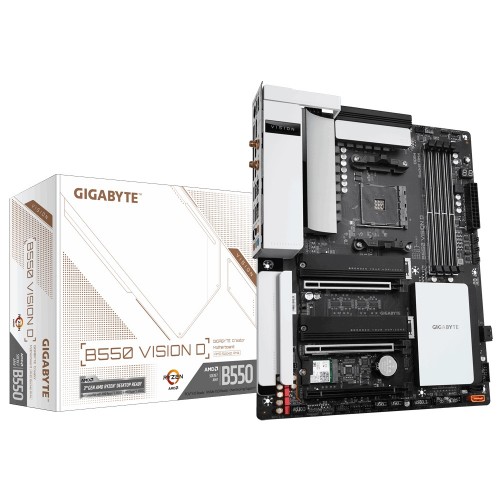

The latest price of Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard in Bangladesh is 0৳ You can buy the Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard at best price from our Website or visit any of our showrooms.
