| Supported CPU | AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors |
| Chipset | AMD B550 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| Type | DDR4 |
| Slots | 4 x DIMM slots |
| Supported Memory | AMD Ryzen 5000 series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Up to 128GB (32 GB single DIMM capacity) |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors + Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880 @60 Hz with 24 bpp * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Others | Max Shared Memory 16 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| USB (s) | 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880 @60 Hz with 24 bpp Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset + Intel Thunderbolt 3 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel Chipset + 2 USB 2.0 Hubs: 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbit/ 1000 Mbit/ 100 Mbit) (LAN1) Realtek 2.5GbE LAN chip (2.5 Gbit/ 1000 Mbit/ 100 Mbit) (LAN2) |
| Wireless Communication module | Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Warranty Details | 03 Years |

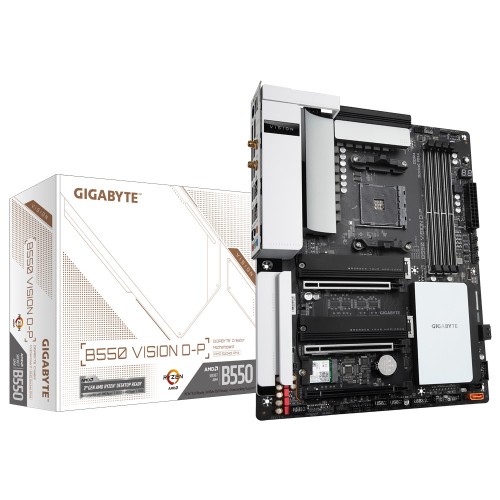

The GIGABYTE B550 VISION D-P AM4 ATX Motherboard is a workstation-class motherboard designed for professionals and content creators who demand high performance, stability, and seamless compatibility. Built on the AMD B550 chipset, it supports Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics Processors, ensuring exceptional computing power for creative workloads such as video editing, 3D rendering, and CAD design.
Engineered for professional use, the motherboard has been fully Quadro QVL tested, meaning it works flawlessly with NVIDIA Quadro graphics cards, making it an ideal choice for creators and designers who require high-end GPU acceleration. The Intel Wi-Fi 6 (802.11ax) ensures ultra-fast wireless connectivity, reducing latency and improving overall networking performance for cloud-based workflows, streaming, and large file transfers.
Keeping performance in check, the effective cooling solution design enhances thermal efficiency, ensuring stable operation even under prolonged workloads. With support for PCIe 4.0, ultra-fast storage, and high-speed networking, the GIGABYTE B550 VISION D-P provides an exceptional balance of power, efficiency, and reliability, making it a top-tier motherboard for creative professionals and workstation users looking for cutting-edge performance.
The latest price of GIGABYTE B550 VISION D-P AM4 ATX Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE B550 VISION D-P AM4 ATX Motherboard at best price from our Website or visit any of our showrooms.
