| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| M.2 Socket | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs |
| Type | DDR4 |
| Slots | 4 x DIMM slots |
| Supported Memory | AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Up to 128GB (32 GB single DIMM capacity) |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time |
| Others | Max Shared Memory 16 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/ 100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Others | D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Warranty Details | 03 Years |

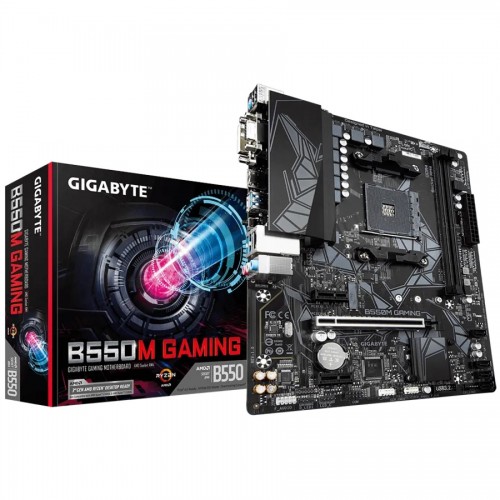

The GIGABYTE B550M GAMING AM4 Micro-ATX Motherboard is a compact yet powerful solution for gamers, content creators, and professionals looking for a high-performance and cost-effective motherboard. Built on the AMD B550 chipset, it supports AMD Ryzen 5000, 3rd Gen, and 3rd Gen with Radeon Graphics processors, delivering exceptional computing power for gaming, streaming, and multitasking.
Designed with GIGABYTE Exclusive 8118 Gaming LAN, this motherboard ensures low-latency, high-speed network connectivity, perfect for online gaming and bandwidth-heavy applications. The 5+3 Phases Pure Digital VRM enhances power efficiency and stability, ensuring smooth and consistent performance even under heavy workloads.
Equipped with Ultra-Fast NVMe PCIe slots, the B550M GAMING allows for lightning-fast data transfer speeds, reducing game load times and improving system responsiveness. Its Micro-ATX form factor makes it an excellent choice for compact gaming rigs and small-form-factor PC builds while still offering expandability and high-speed connectivity options.
Whether you're building a budget-friendly gaming PC or a high-performance workstation, the GIGABYTE B550M GAMING provides excellent value, reliability, and gaming-focused features to enhance your overall computing experience.
The latest price of GIGABYTE B550M GAMING AM4 Micro-ATX Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE B550M GAMING AM4 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
