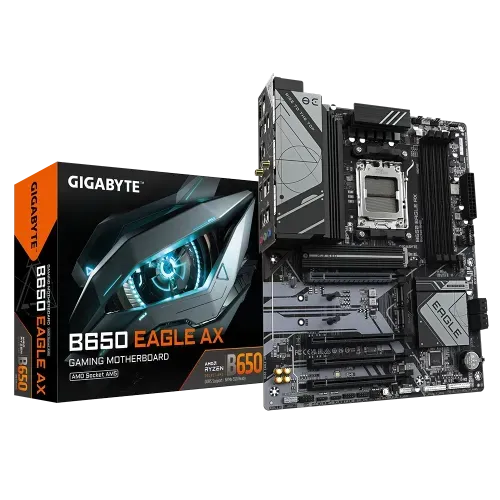

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

Gigabyte check_circle In Stock Model: B650 EAGLE AX

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

Name: GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard
Brand: Gigabyte
Price: 25500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 130 views

Model: B650 EAGLE AX
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Graphics Output: 1x Display Port, 1 x HDMI
Features: Realtek GbE LAN chip & Realtek Wi-Fi 6E RTL8852CE

25,500৳

29,700৳

14% OFF

EMI starts at 836৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset	AMD B650
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

Memory

Type	DDR5
Slots	4 DIMMs
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	192GB

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI	1x HDMI \| 1 x DisplayPorts
USB (s)	CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	3 x Audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 Years

Description

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard Price in Bangladesh

Overview

The GIGABYTE B650 EAGLE AX DDR5 AM5 motherboard combines advanced features and robust performance, tailored for enthusiasts and gamers. With support for the AMD Ryzen 7000/8000 series processors, DDR5 memory, and high-speed storage solutions, this ATX board is built to enhance computing experiences. It includes modern connectivity options, reliable networking, and a durable design, ensuring compatibility with the latest technologies for superior performance.

Performance and Features

Processor Support: Compatible with AMD Ryzen 7000/8000 series processors on the AM5 socket, offering impressive processing capabilities.
Chipset: Powered by the AMD B650 chipset for efficient multitasking and gaming.
Memory: Supports up to 192GB DDR5 RAM with speeds up to 7600 MT/s (OC), ideal for demanding applications. Features AMD EXPO™ and XMP profiles for simplified overclocking.
Storage: Equipped with three M.2 slots and four SATA 6Gb/s ports, supporting PCIe 5.0 and PCIe 4.0 NVMe SSDs for lightning-fast storage performance.
Expansion Slots: Includes one PCIe 4.0 x16 slot and multiple PCIe 3.0 x1 slots for additional peripherals or upgrades.

Design and Durability

Form Factor: ATX design measuring 30.5cm x 24.4cm, ensuring compatibility with most mid- and full-tower cases.
Cooling and RGB: Features multiple fan headers, RGB LED strip headers, and addressable Gen2 LED strip headers to enhance cooling and aesthetics.
Audio: Realtek High-Definition Audio with support for 7.1-channel sound, configurable via audio software.

User-Friendly Features and Software

Connectivity:
- 1 x DisplayPort (3840x2160@144Hz) and 1 x HDMI 2.1 port (4096x2160@60Hz).
- USB options include USB 3.2 Gen 1 and Gen 2 Type-C ports for high-speed data transfer.
- Integrated Realtek Wi-Fi 6E and Bluetooth 5.3 for seamless wireless connectivity.
- Realtek GbE LAN for reliable wired networking.
Bundled Software: Includes Norton Internet Security (OEM) and LAN bandwidth management tools.

Why Choose GIGABYTE B650 EAGLE AX?

High Performance: Advanced CPU and memory support make it a powerhouse for gaming and productivity.
Extensive Connectivity: Multiple USB ports, Wi-Fi 6E, and fast networking options ensure you're always connected.
Durable Build: Designed with long-lasting components and comprehensive cooling support.
Future-Ready: Support for DDR5, PCIe 5.0, and AMD EXPO™ ensures compatibility with cutting-edge technologies.

Reasons to Buy

Designed for high-performance builds with AMD Ryzen processors.
Supports the latest DDR5 RAM for faster data handling.
Multiple M.2 slots for high-speed storage.
Integrated Wi-Fi 6E and Bluetooth 5.3 for wireless convenience.
