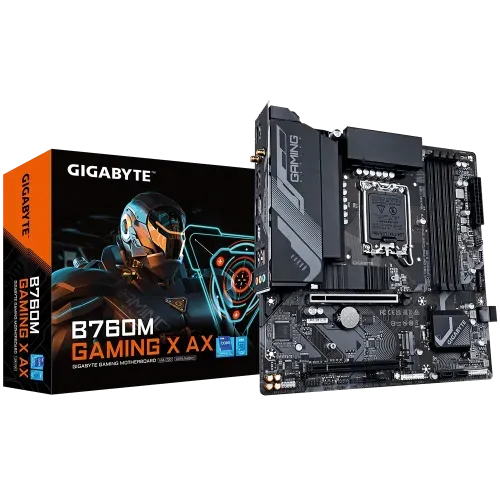

GIGABYTE B760M GAMING X AX mATX Motherboard

GIGABYTE B760M GAMING X AX mATX Motherboard Price in Bangladesh

Overview

The GIGABYTE B760M GAMING X AX is a feature-rich Micro-ATX motherboard tailored for gamers and PC enthusiasts. Supporting Intel’s 14th, 13th, and 12th Generation processors, it combines cutting-edge technologies like DDR5 memory, PCIe 4.0, Wi-Fi 6E, and Bluetooth 5.3. Its compact form factor makes it ideal for mid-sized builds, delivering robust performance and modern connectivity options.

Performance and Features

CPU and Memory

• Processor Support: Fully compatible with Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors, ensuring seamless performance for gaming and multitasking.
• Memory:
  • Supports up to 192GB of DDR5 memory across 4 DIMM slots.
  • Overclocking speeds up to 7600 MT/s deliver smooth performance for resource-intensive tasks.
  • Dual-channel memory architecture with support for ECC and non-ECC DIMMs in non-ECC mode.

Expansion and Storage

• PCIe Slots:
  • 1 x PCIe 4.0 x16 slot for high-performance GPUs.
  • 1 x PCIe 3.0 x4 slot for additional expansions.
• Storage Options:
  • 2 x M.2 connectors (PCIe 4.0 x4) for ultra-fast NVMe SSDs.
  • 4 x SATA 6Gb/s connectors for traditional storage devices.
• RAID Support: RAID 0, 1, 5, and 10 for enhanced performance and redundancy for SATA drives.

Design and Durability

• Form Factor: Compact Micro-ATX design (24.4cm x 24.4cm) is ideal for mid-sized PC cases.
• Build Quality: Sturdy construction with high-quality components ensures durability and stable performance, even under heavy loads.

User-Friendly Features and Software

Connectivity

• USB Ports:
  • Rear Panel: 3 x USB 3.2 Gen 1, 5 x USB 2.0.
  • Internal Headers: 1 x USB Type-C header (USB 3.2 Gen 2), 1 x USB 3.2 Gen 1 header, and 2 x USB 2.0 headers.
• Networking:
  • Realtek 2.5GbE LAN for fast wired connectivity.
  • Wi-Fi 6E AX: Offers ultra-fast wireless speeds on 2.4GHz, 5GHz, and 6GHz bands.
  • Bluetooth 5.3: Ensures stable wireless device connectivity.

Graphics and Audio

• Graphics Outputs:
  • 1 x HDMI 2.0 (4096x2160@60Hz).
  • 1 x DisplayPort (4096x2304@60Hz).
• Audio: Realtek High-Definition Audio CODEC supports up to 7.1-channel surround sound with S/PDIF Out for an immersive audio experience.

Customization and Software

• RGB Lighting: Features 2 addressable LED strip headers and 2 RGB LED strip headers for customizable lighting effects.
• GIGABYTE Control Center (GCC): Provides an intuitive platform for system optimization, including RGB lighting, fan control, and system updates.

Why Choose GIGABYTE B760M GAMING X AX?

• Supports Intel’s Latest CPUs: Fully compatible with Intel 14th, 13th, and 12th Gen processors for high-end gaming and productivity.
• Next-Gen Memory and Storage: DDR5 support and PCIe 4.0 ensure excellent speed and reliability.
• Advanced Connectivity: Includes Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5GbE LAN for a seamless online experience.
• Compact Yet Versatile: Micro-ATX form factor offers robust features in a space-saving design.

Reasons to Buy

• Ideal for gamers and content creators seeking advanced features in a compact build.
• Supports the latest Wi-Fi 6E and Bluetooth 5.3 technologies for wireless connectivity.
• DDR5 and PCIe 4.0 support offer future-proof performance.
